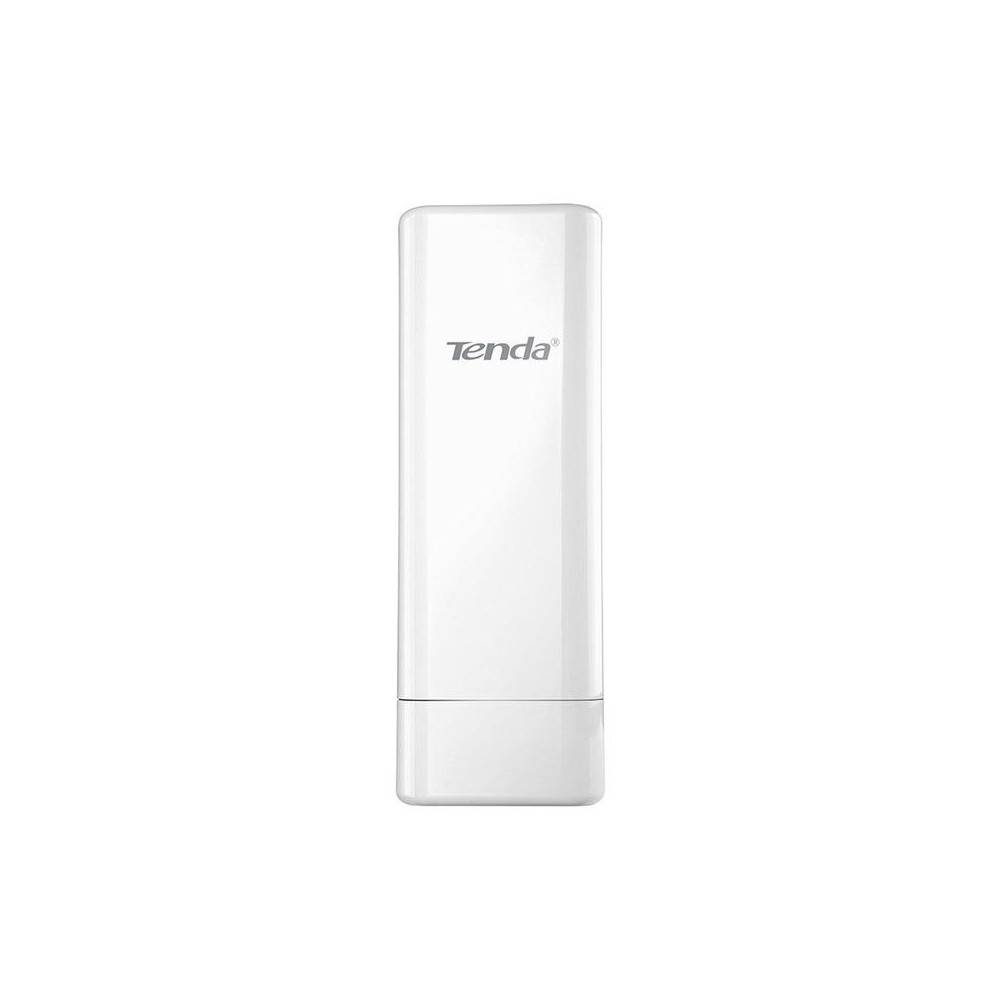

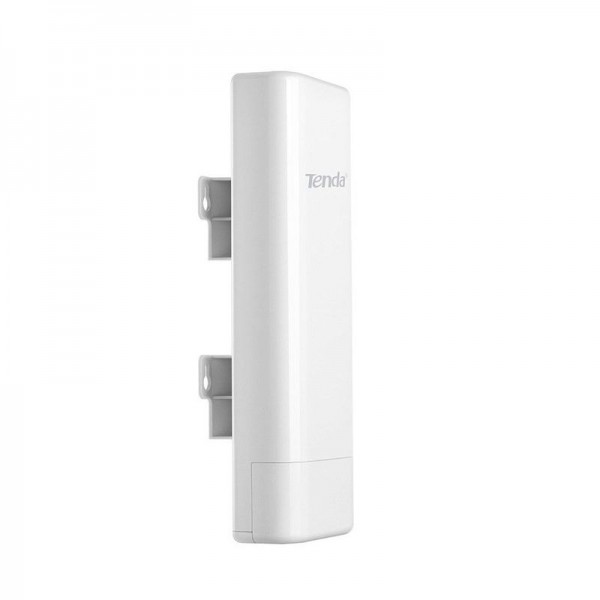

Access point repeater with 5GHz frequency for outdoor use Tenda O4 IP64 up to 5Km
O4 5GHz Long Range Outdoor CPE is designed for CPE WISP solutions and long distance wireless network solutions for video surveillance and data transmission. It features a 14dBi directional antenna to provide an efficient way to collect and maintain a stable signal for a wireless network. By adopting automatic bridging technology, two CPEs can automatically connect to each other to simplify installation.
CPE outdoors from point to point at 5km
O4 5GHz Long Range Outdoor CPE is designed for WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features a 14dBi directional antenna to provide an efficient way to collect and maintain a stable signal for a wireless network. By adopting automatic bridging technology, two CPEs can automatically connect to each other to simplify installation.
5 km transmission range
O4 adopts an independent power amplifier and 14dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.
Extended frequency of the super channel
O4 adopt of Qualcomm AR9344 chipset and special software mechanism optimization for radio driven architecture to offer extended frequency support. This feature is designed to help users get out of the congested, unlicensed 5GHz band and into clean spectrum.
Proprietary TD-MAX-TendaTDMA protocol
TD-MAX is Tenda's proprietary TDMA (Time Division Multiple Access) protocol to improve performance and capacity for wireless WISP external application scenarios. In outdoor environments, the CPE uses highly directional antennas to connect to the base station from distances that can span several kilometers. CPEs cannot detect each other, they become "hidden nodes" and cannot coordinate access to the wireless channel. Therefore the base station suffers frequent collisions from stations transmitting simultaneously. As the network scales, these collisions accumulate exponentially, increasing latency and decreasing throughput. With TD-MAX, it coordinates all data transmission and allocates time to active clients to provide greater noise immunity performance than conventional 802.11 CSMA / CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.
10/20/30 / 40MHz channel bandwidth for better transmission speed
O4 applies special optimization in the software to record parameters to provide a 10/20/30 / 40MHz channel bandwidth option. Provides an extra 10 MHz and 30 MHz channel bandwidth option to be consumed based on application scenarios. When you choose the 30 MHz channel bandwidth option, you can increase the throughput for noisy environments. When choosing the 10 MHz channel bandwidth option, you can increase the number of available and non-overlapping channels, so that networks can scale better.
Channel shift to avoid interference
O4 provides Channel Shift function to compensate for the 5 MHz higher center frequency. It can avoid interference from nearby APs and provide higher throughput.
Multiple application scenarios
Long distance wireless connection; one works as AP mode and another works as Station mode to create a long distance wireless connection for video surveillance and data transmission.
WISP mode (Client + Router); Connect wirelessly to the WISP station / hotspot to share the Internet with your local wired and wireless network.
CPE Assistant-Centralized Management Platform
O4 equipped with centralized management software that helps users easily manage all devices in their network from a single PC - CPE Assistant. Features such as device discovery, status monitoring, firmware update and network maintenance can be managed using CPE Assistant.
Professional Outdoor Design
O4 adopts IP64 weatherproof and lightning resistant 6000V design, it can withstand harsh environmental conditions such as sunshine, rain or extremely low / high temperature environment
Application scenarios: WISP CPE, transmission long distance data and video surveillance
Standard and protocol: IEEE 802.11a / n
Private TDMA protocol: TD-MAX
Max wireless speed: 300Mbps
Interface: 1x10 / 100Mbps port ethernet
Antenna gain: 14dB
Antenna beam width: Horizontal: 30 ° Vertical: 30 °
Power consumption: 8.5W
Indicators: PoE / LAN, LED1, LED2, LED3
Power supply: 24V0.5A Passive PoE
Lightning protection: 6000V
Passive PoE: Passive power supply over ethenet via PoE / LAN (4.5 pin -7 , 8 pin), Voltage range: 21-25 Vdc
Operation mode: AP / Station / WISP / P2MP / WDS Repeater / Router
Wireless enable / disable: supported
Hidden SSID: supported
Channel: 10/20/30 / 40MHz
Client limitation for SSID: supported
Wireless Access Cons l: supported
Client weak signal limitation: supported
Transmission power: adjustable every 1dB
APSD capacity: supported
Wireless security: 64/128 WEP, WPA-PSK, WPA2 -PSK, WPA & WPA2-PSK, WPA, WPA2
DHCP Server: Supported
VLAN Tagging for SSID: Supported
VPN Hotline: PPTP, L2TP
Reformat Program: Supported
Page time limit: supported
Dynamic DNS: noip, dyndns.org
Network diagnostics: Ping, Traceroute, Signal Scan
Date and settings configuration: supported
Working temperature: -30 / +60 °C
Default settings: Default login IP: 192.168.2.1, Default Login Username: admin, Default Login Password: admin
Certifications: FCC / CE / RoHS
