Relay 12V 5A 1 Exchange 1721531-2 TE

Relay 12V 5A 1 Exchange 1721531-2 TE

€ 4.80
Tax included
In stock
Ceb
PCJ-112D3M

Relay 12V 5A 1 Exchange 1721531-2 TE

100% secure payments

Relay 12V 5A 1 Exchange 1721531-2 TE

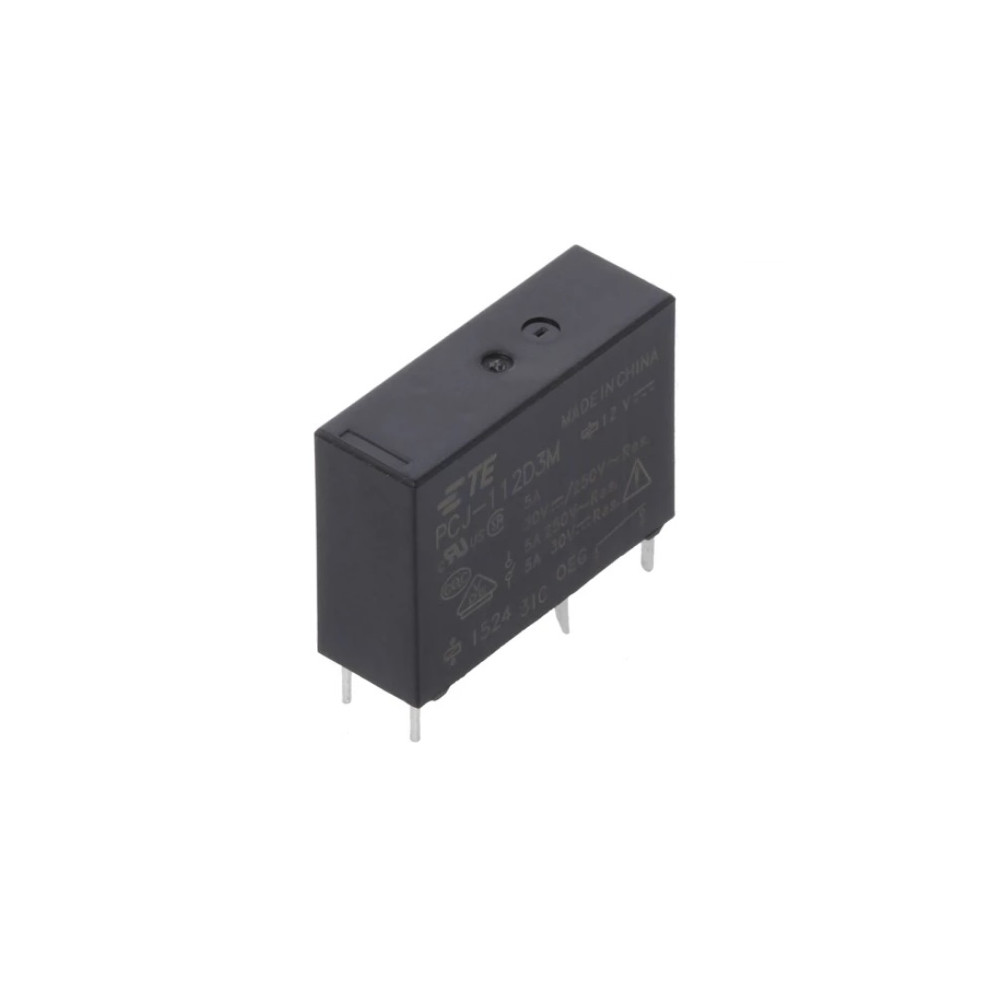

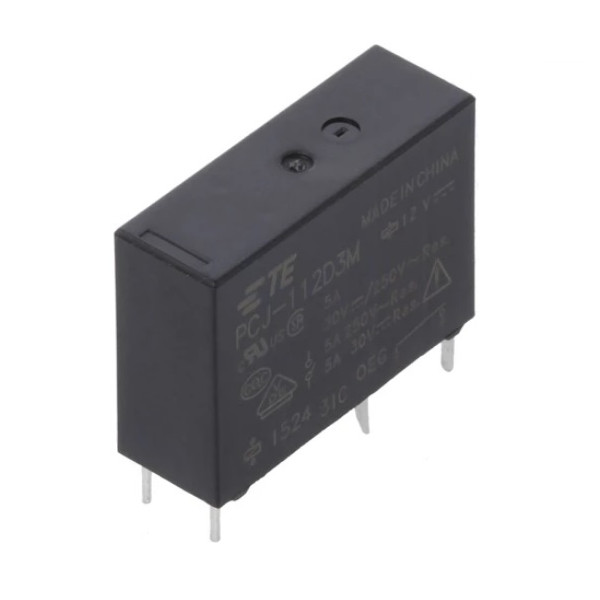

Small single-exchange electromagnetic relay from the Te Connectivity brand. Ideal for replacement, design or repair of electronic boards.

Details:

Manufacturer: Te Connectivity
Relay type: electromagnetic
Contact configuration: SPST-NO
Nominal coil voltage: 12 Vdc
Minimum coil voltage: 9 Vdc
Capacity load AC: 5A / 250Vac (with resistance load)
Switching voltage: max 30 Vdc, max 250Vac
Relay version: miniaturized
Mounting: PCB
Coil resistance: 720 ohm
Intervention time: 10 ms

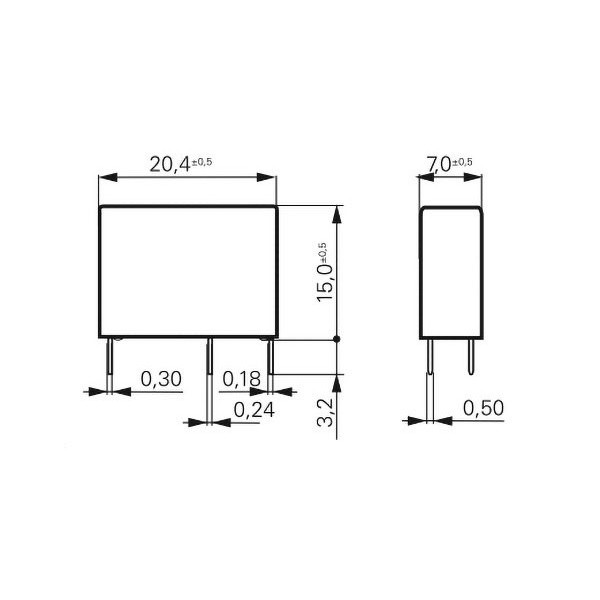

External dimensions: 20.4x15x7mm
Release time: 4 ms
Coil absorption: 200 mW
Working temperature: -40 / +105 ° C
Relay series: PCJ
Contact material: AgNi

Ceb
PCJ-112D3M
2000000164441
14 Items

Data sheet

Tensione
12v
Contacts configuration
SPST NO
