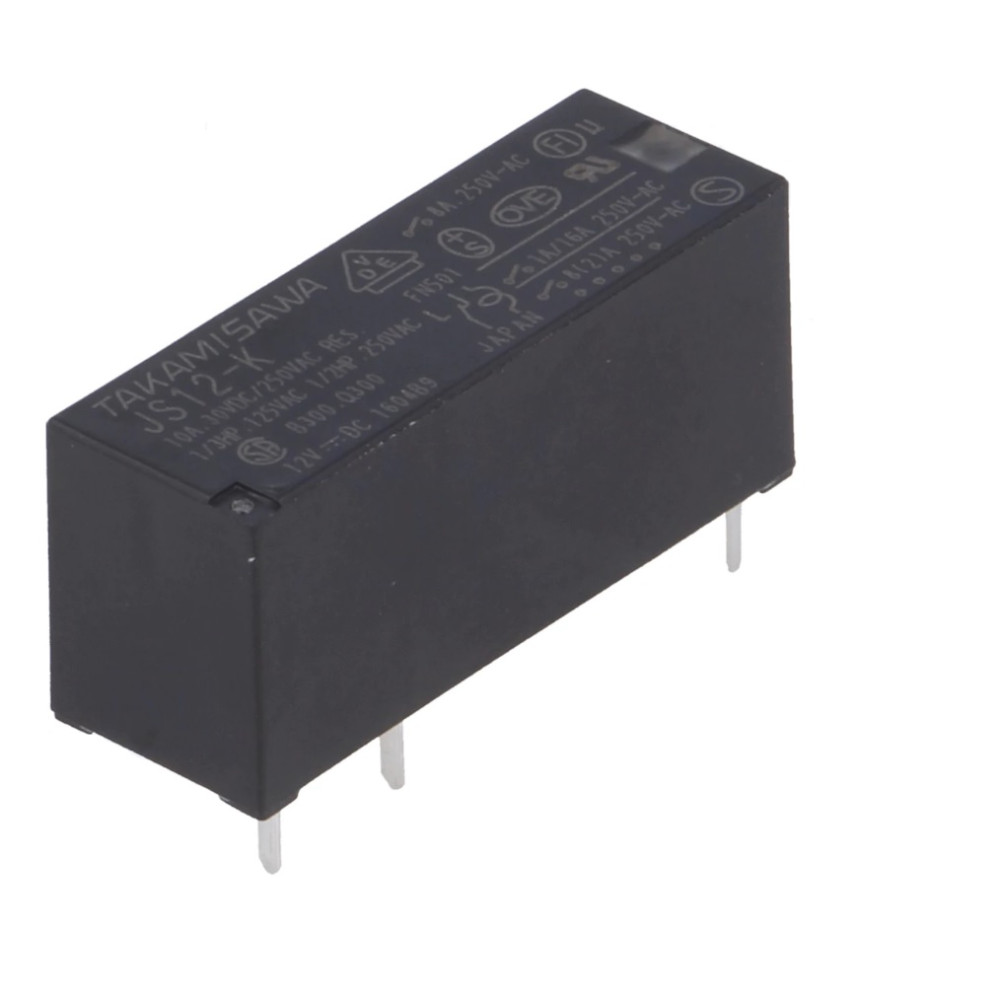

Relay 12V 8A 1 Changeover JS-12-K TAKAMISAWA

Small size single exchange electromagnetic relay from the TAKAMISAWA brand. Ideal for replacement, design or repair for electronic boards.

Details:

Manufacturer: Fujitsu-Takamisawa
Relay type: electromagnetic
Contact configuration: SPDT
Nominal coil voltage: 12 Vdc
Minimum coil voltage: 8.5 Vdc
Maximum voltage coil: 28.3 Vdc
AC load capacity: 8A / 250Vac (with resistance load)
DC load capacity: 8A / 24Vdc (with resistance load)
Switching voltage: max 150 Vdc , max 400Vac
Relay version: miniature
Mounting: PCB
Coil resistance: 660 ohm
Trip time: 10 ms

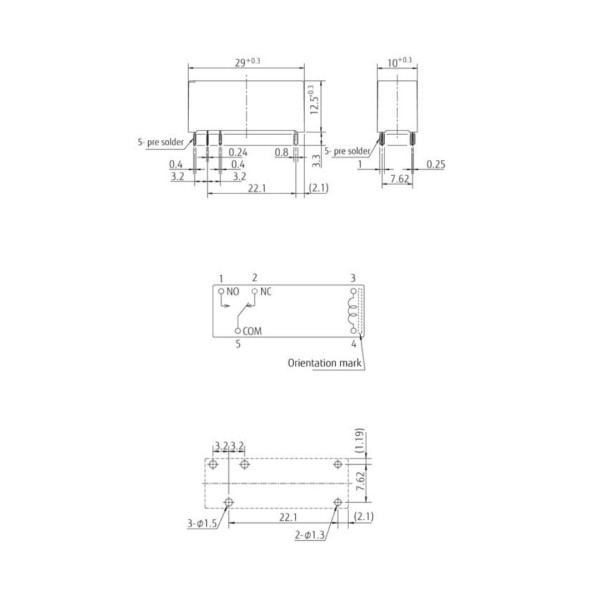

External dimensions: 29x10x12.5mm
Release time: 5 ms
Coil absorption: 220-290 mW
Working temperature: -40 / +85 °C
Relay series: JS
Contact material: AgSnO2

Fujitsu
JS-12N-K
2000000162690
12 Items

Data sheet

Tensione
12v
Contacts configuration
SPDT
