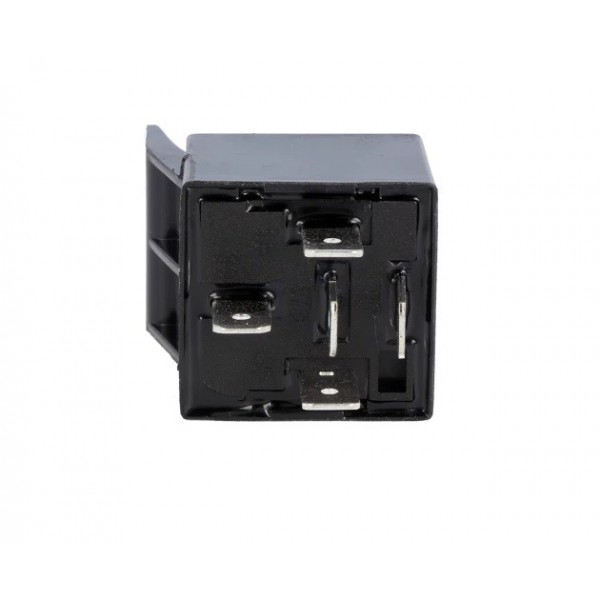

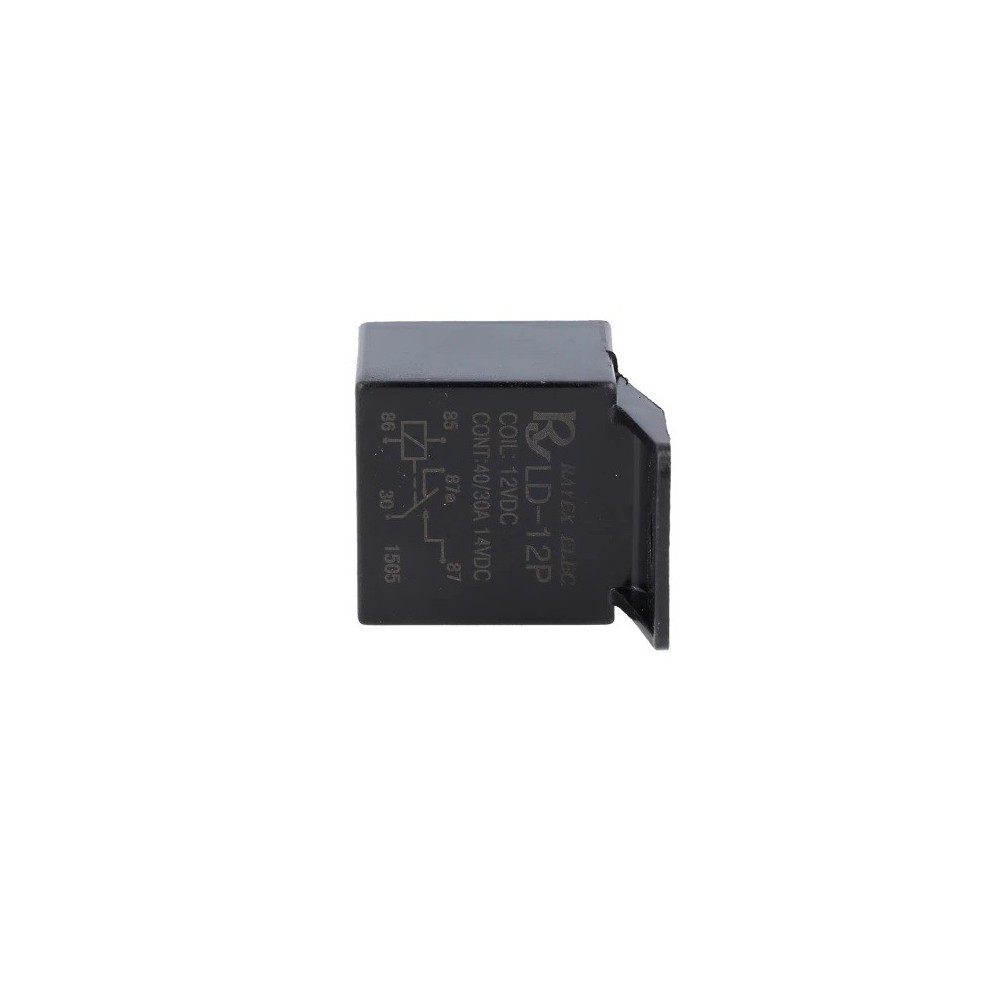

Relay 12V 30A 1 changeover LD-12P

Relay 12V 30A 1 changeover LD-12P

€ 4.90
Tax included
In stock
Ceb
LD-12P

Relay 12V 30A 1 changeover LD-12P

100% secure payments

Relay 12V 30A 1 changeover LD-12P

Small size relay with faston ideal for designing or repairing electronic boards.

Details:

Relay type: electromagnetic
Manufacturer code: LD-12P
Contact configuration: SPDT
Nominal coil voltage: 12Vdc
Maximum DC contact current: 30A / 12Vdc
Intervention time: 10ms
Assembly: with faston
Working temperature: -55 / 85 °C
Connector dimensions: 6.3x0.8mm
Mechanical stability: 1000000 cycles

Ceb
LD-12P
2000000162577
3 Items

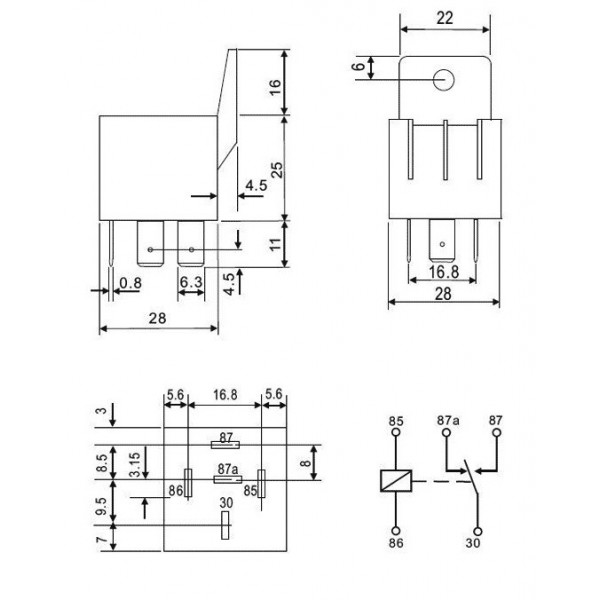

Data sheet

Tensione
12v
Contacts configuration
SPDT
