Relay G5V-1 Omron 24Vdc

Relay G5V-1 Omron 24Vdc

€ 3.50
Tax included
In stock
Ceb
G5V1-24

Relay G5V-1 Omron 24Vdc

100% secure payments

Relay G5V-1 Omron 24Vdc

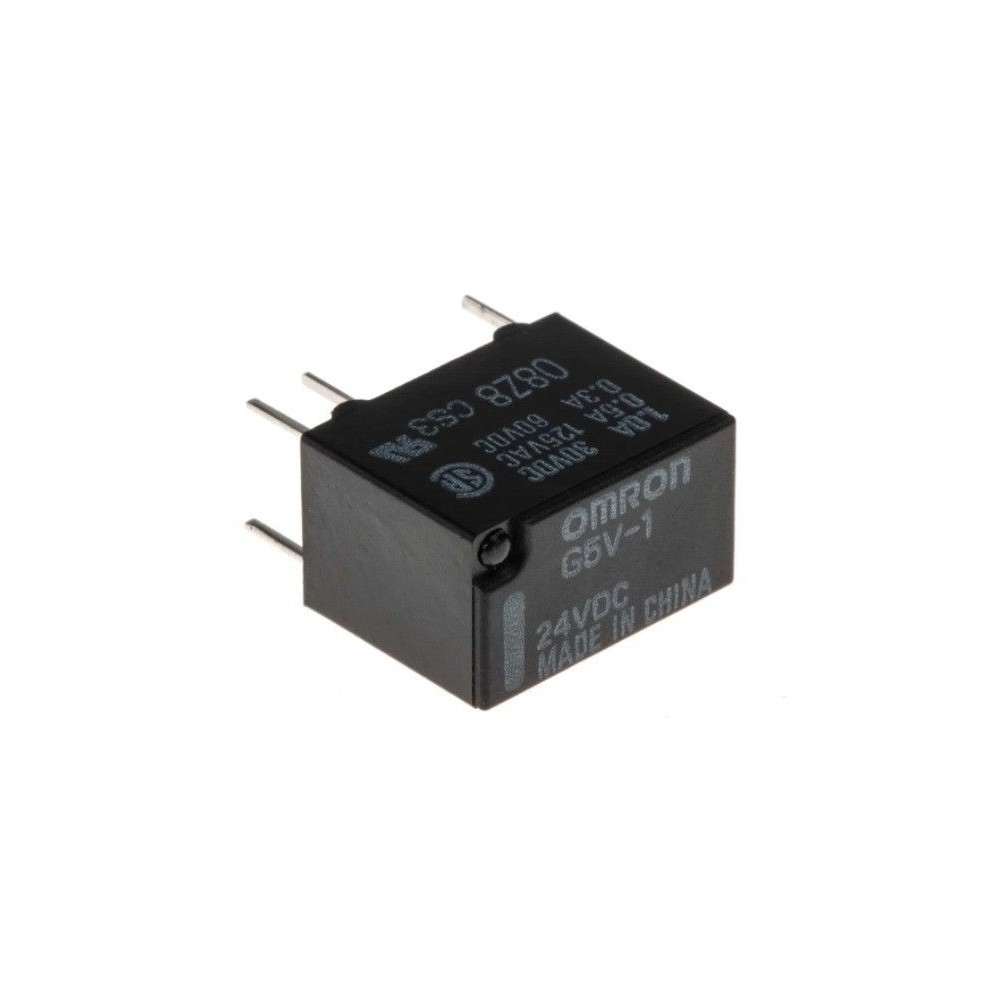

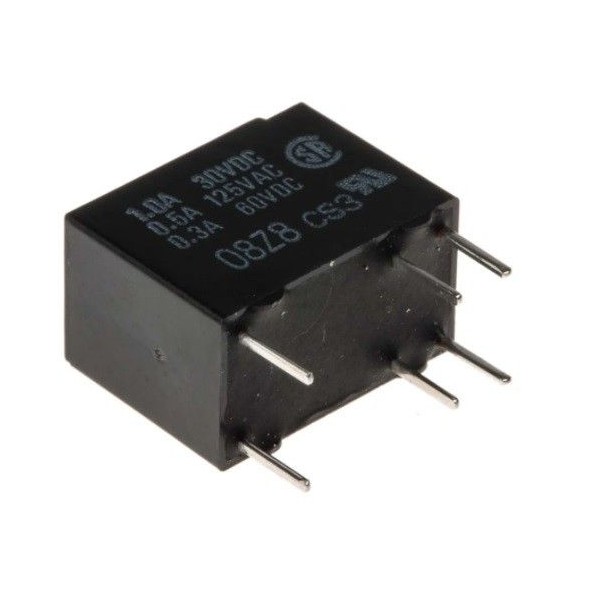

The Omron G5V-1 24DC is the small and highly sensitive non-blocking SPDT relay ideal for signal circuits. A fully sealed container that provides excellent resistance in outdoor environments. PCB terminals, 1mA to 1A switching power plus a highly sensitive 150mW nominal coil power consumption all add to this miniature relay.

Details:

Relay type: electromagnetic
Contact configuration: SPDT
Coil voltage: 24Vdc
AC load capacity: 0.5A / 125V AC
DC load capacity: 1A / 24V DC
Max switching voltage: max. 60V DC, max. 125V AC
Coil resistance: 3.84Kohm

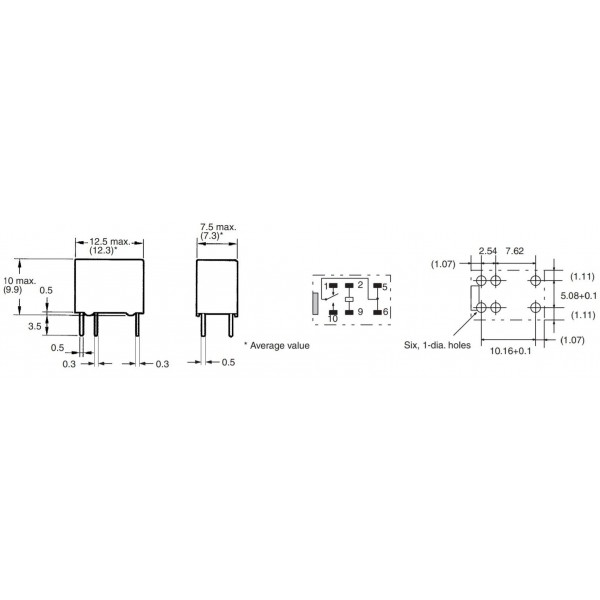

External dimensions: 12.5x7.5x10mm
Coil absorption: 150mW
Working temperature: -30 / + 70 ° C
Relay series : G5V-1

Ceb
G5V1-24
2000000161723
8 Items

Data sheet

Tensione
24v
Contacts configuration
SPDT
