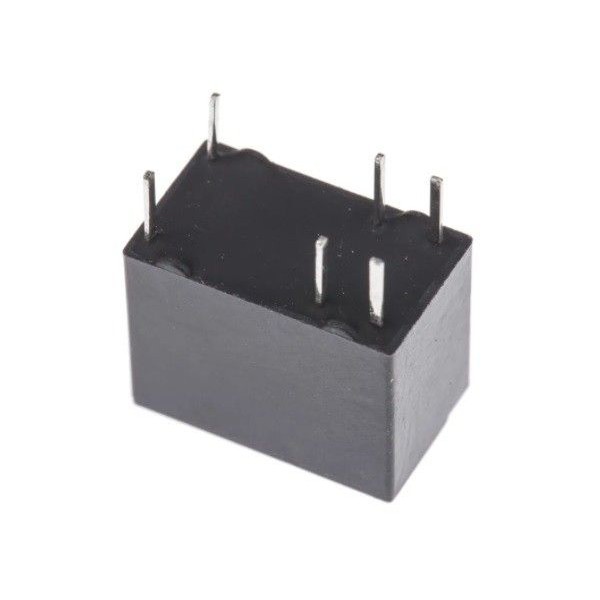

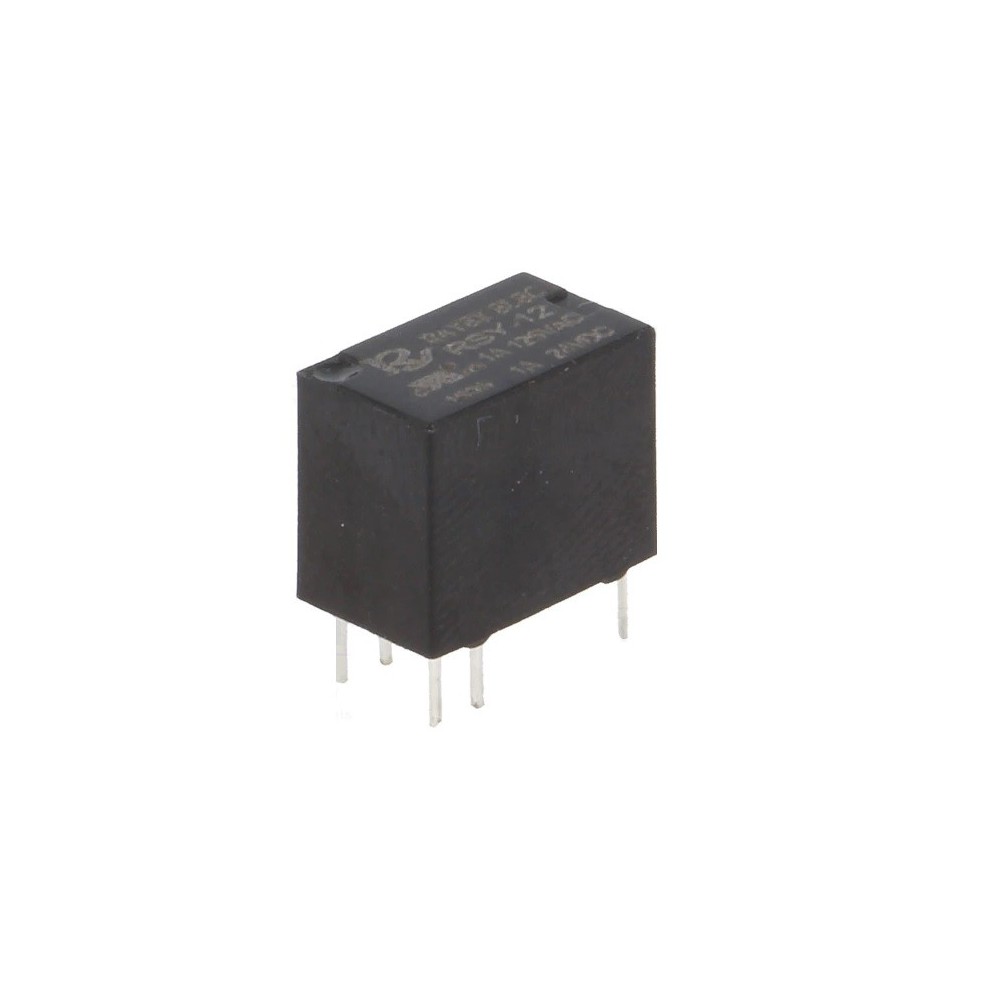

Relay G5V-1 12Vdc

The G5V-1 12DC is the small and highly sensitive blockless SPDT relay ideal for signal circuits. A fully sealed container that provides excellent resistance in outdoor environments. PCB terminals, 1mA to 1A switching power plus a highly sensitive low rated coil power consumption all add to this miniature relay.

Details:

Relay type: electromagnetic
Contact configuration: SPDT
Coil voltage: 12Vdc
AC load capacity: 0.5A / 125V AC
DC load capacity: 1A / 24V DC
Max switching voltage: max. 24V DC, max. 125V AC
Coil resistance: 100mOhm

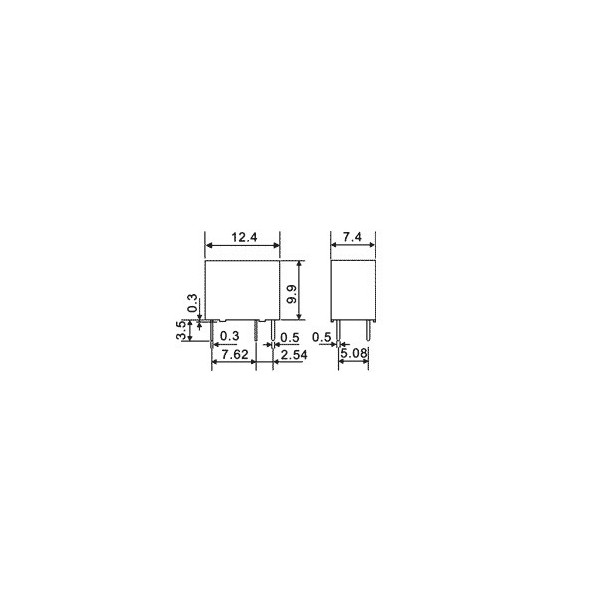

External dimensions: 12.4x7.4x9.9mm
Working temperature: -25 / + 55 ° C
Relay series: G5V-1

Ceb
G5V1-12
2000000161716
96 Items

Data sheet

Tensione
12v
Contacts configuration
SPDT
