Relay 12V 5A 1 Exchange JV-12S-KT TAKAMISAWA

Relay 12V 5A 1 Exchange JV-12S-KT TAKAMISAWA

€ 3.90
Tax included
In stock
Ceb
JV-12S-KT

Relay 12V 5A 1 Exchange JV-12S-KT TAKAMISAWA

100% secure payments

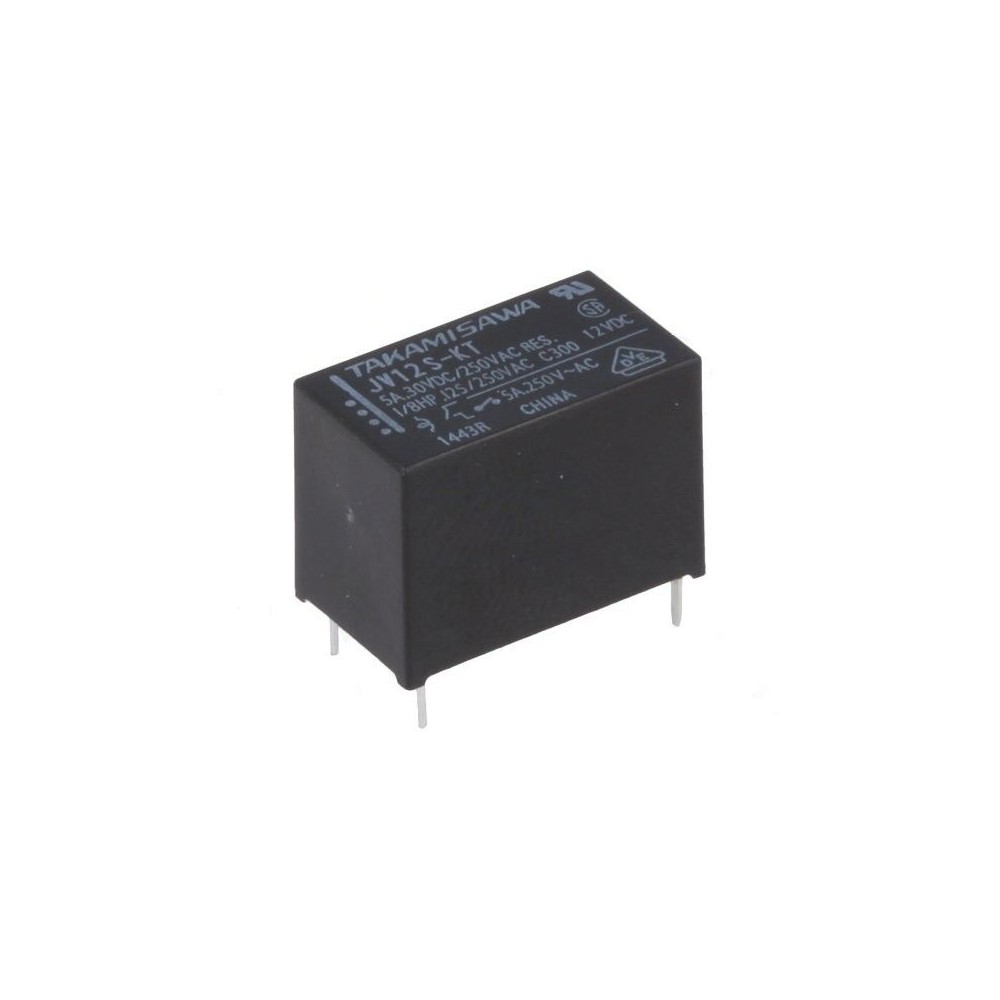

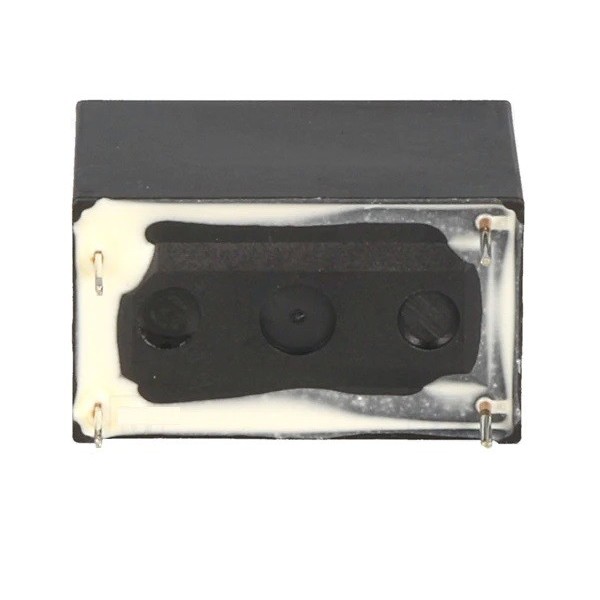

Relay 12V 5A 1 TAKAMISAWA exchange

Small size single exchange electromagnetic relay from TAKAMISAWA brand. Ideal for replacement, design or repair of electronic boards.

Details:

Manufacturer: Fujitsu-Takamisawa
Relay type: electromagnetic
Contact configuration: SPST-NO
Nominal coil voltage: 12 Vdc
Minimum coil voltage: 9 Vdc
AC load capacity: 5A / 250Vac (with resistance load)
DC load capacity: 5A / 30Vdc (with resistance load)
Switching voltage: max 150 Vdc, max 250Vac
Version relay: miniaturized
Mounting: PCB
Coil resistance: 720 ohm
Intervention time: 8 ms
External dimensions: 17.5x10x12.5mm
Release time: 4 ms
Coil absorption: 200 mW
Working temperature: -40 / +70 ° C
Relay series: JV
Contact resistance: 70 mOhm
Contact material: AgSnO2

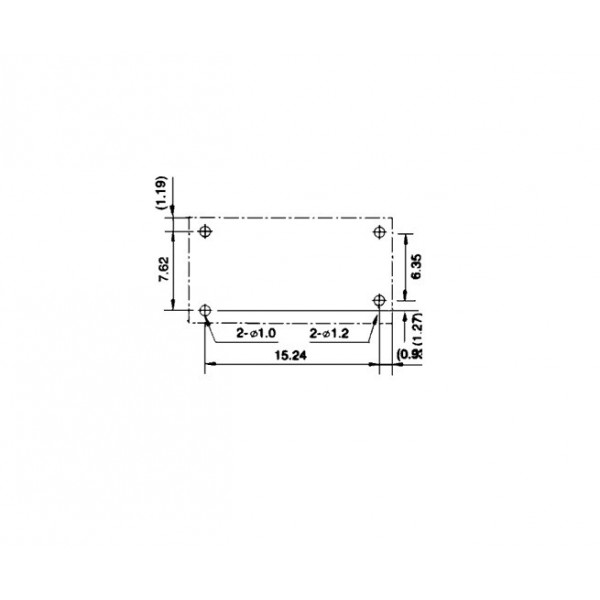

Output pitch: 6.35mm

Ceb
JV-12S-KT
2000000153735
14 Items

Data sheet

Tensione
12v
Contacts configuration
SPST NO
