Removable straight male 4-pole terminal with 5mm pitch for PCB

Removable straight male 4-pole terminal with 5mm pitch for PCB

€ 2.20
Tax included
In stock
Ceb
MO/25004

Removable straight male 4-pole terminal with 5mm pitch for PCB

100% secure payments

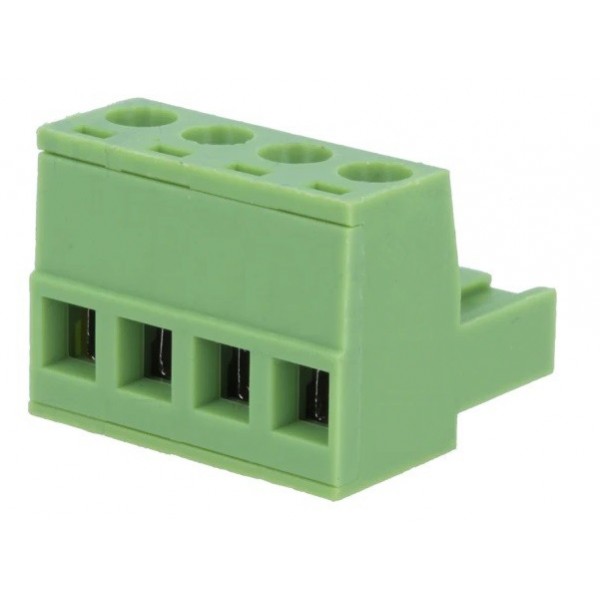

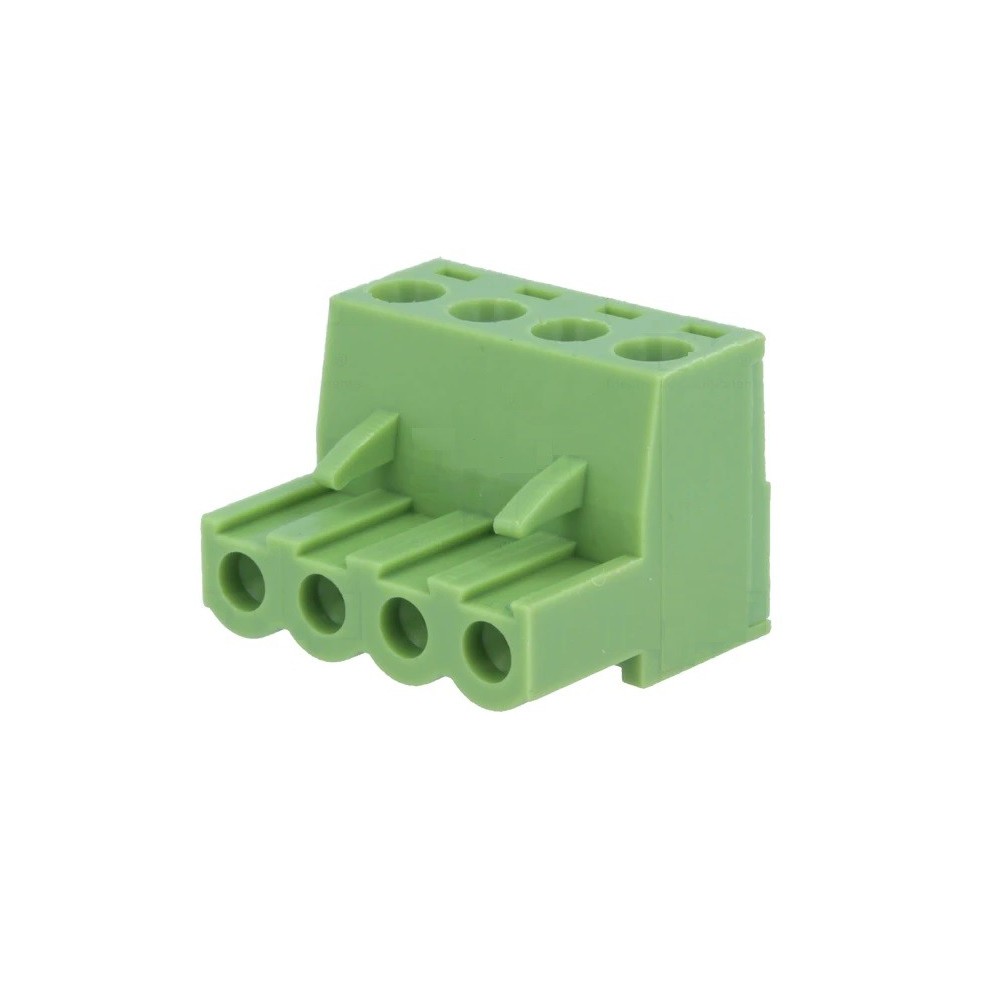

Removable female 4-pole terminal block with 5mm pitch

High quality PCB terminals with 5mm pitch. They are constructed with green colored polarized moldings which retain UL94-V0 PA66 flame retardant. These 5mm pitch terminals have tin-plated brass contacts with M2.5 fixing screws for a stable connection. They support cables up to 2.5mm in size with guided pin alignment.
These terminals allow you to transfer data, signals and power directly to the PCB in a secure manner. They make it ideal for use as a permanent solution or temporary circuits.

Details:

Type: removable terminal
Pitch: 5mm
Gender: female
Number of poles: 4
Nominal current: 12A
Nominal voltage: 300V
Material case: PA66
Combustion class: UL94V-0
Contact material: brass

Ceb
MO/25004
1100038016420
48 Items

Data sheet

Connector gender
Female
Fixing
On the cable
Pin quantity
4
Pin distance
5mm
