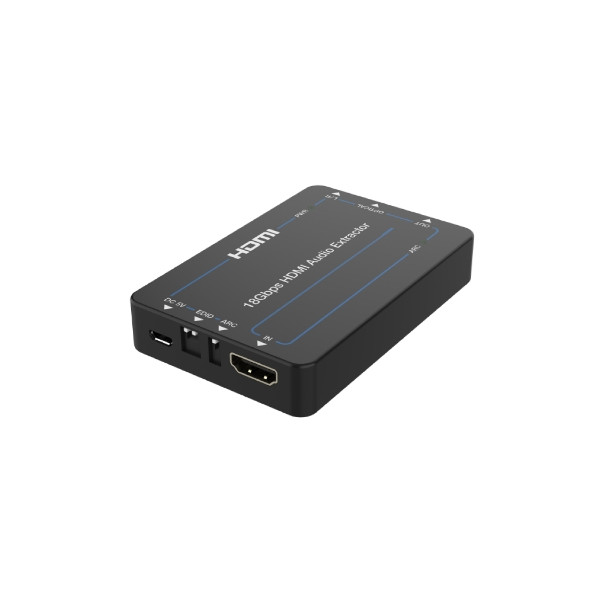

4K 60Hz HDMI audio extractor

4K 60Hz HDMI audio extractor

€ 49.90
Tax included
Out of Stock
GBC
14281054

4K 60Hz HDMI audio extractor

100% secure payments

HDMI 4K 60Hz analog and digital audio extractor

Extract the audio signal coming from a 4K@60Hz HDMI source and direct it to the Toslink digital output for connection to Hi-Fi surround sound amplification systems; or to the 3.5mm analog Stereo output (not amplified), recommended for listening with headphones. EDID Control Manual. ARC extractor: via dip switch control it is possible to activate the ARC functionality. The audio signal returns from the HDMI port of the TV dedicated to the extractor, and is connected to the Toslink digital output for connection to the amplifier. Maximum supported resolution: 4K@60Hz, HDCP 2.2; audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master; Bandwidth: 18Gbps. Supports HDR, HDR10, HDR10+, Dolby Vision, HLG.

Features:

- Supports 4Kx2K@60Hz with 18Gbps bandwidth.
- Supports DTS and Dolby Digital.
- Micro USB input for additional power (optional).

Details:

Connection A: HDMI female
Connection B: HDMI female + optical Toslink + 3.5mm jack
Maximum resolution: UHD 4K x 2K @ 60Hz 12bit
Band: 18 Gbps
HDCP: 2.2
Audio formats: DTS-HD Master; Dolby TrueHD; LPCM 7.1CH
Protocol support: eARC/ARC on Toslink
Power supply: 5Vdc 1A (micro USB)
Dimensions 90x60x16mm
Weight: 48gr

GBC
14281054
8023389770144
