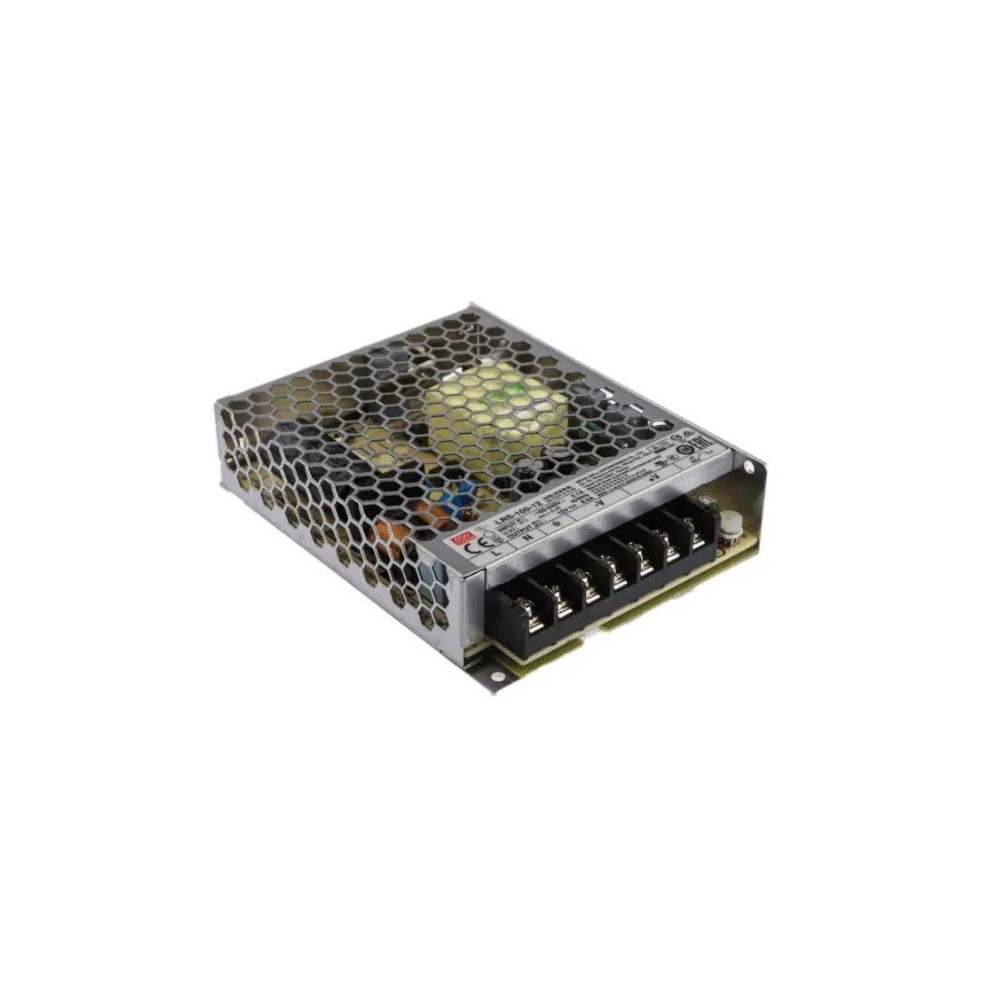

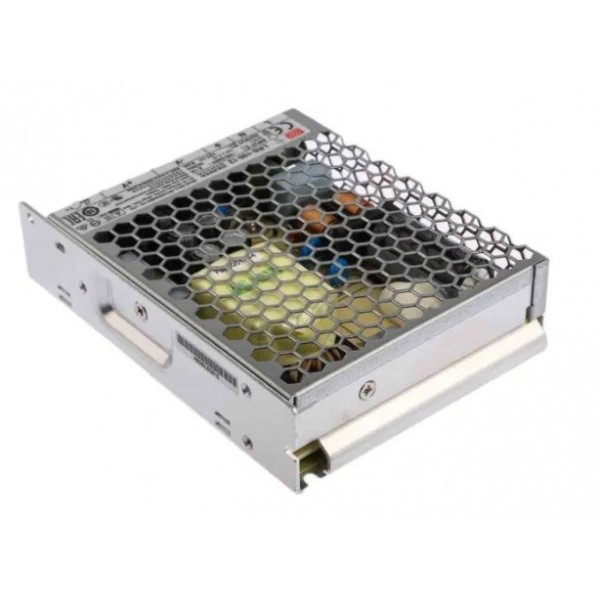

Professional 12V DC 8.5A power supply LRS-100-12

Professional 12V DC 8.5A power supply LRS-100-12

€ 32.90
Tax included
In stock
Ceb
LRS-100-12

Professional 12V DC 8.5A power supply LRS-100-12

100% secure payments

Professional 12V DC 8.5A power supply LRS-100-12

The MeanWell LRS-100 Series 102W Single Output Switching Power Supply has a rated output current of 8.5A at 12Vdc. It features a universal input power voltage ranging from 85VAC to 264VAC and 120VDC to 373VDC. Provides a metal mesh and air convection to ensure excellent heat dissipation. The power supply is able to offer extremely low power consumption under no load. The power supply meets anti-vibration requirements up to 5G and makes it ideal for installation in test environments.

General Features:

- Withstands 300VAC voltage spikes for 5 seconds
- High operating temperature, up to 70 ° C
- Passes the 5G vibration test
- Operates up to a height of 5,000 m
- High efficiency, long life and reliability
- Miniaturized dimensions, high power density
- Free air convection cooling
- Short circuit / overload protections / Over voltage
- Safety standard: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 / -2-16, CCCGB4943

Details:

Power: 102W
Output voltage: 12V DC
Max output current: 8.5A
Tolerance: 10.2V - 13.8V

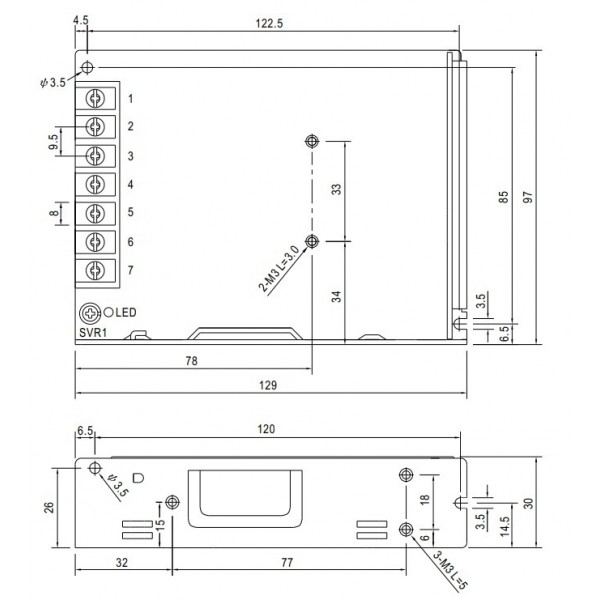

Dimensions: 129x97x30 mm

Main Uses:

- Lighting Systems
- Industrial Plants
- Production Machines

Ceb
LRS-100-12
8006012333725
4 Items

Data sheet

Tensione
12v
W
100
A
8.5
