Professional 12V DC 6A power supply LRS-75-12

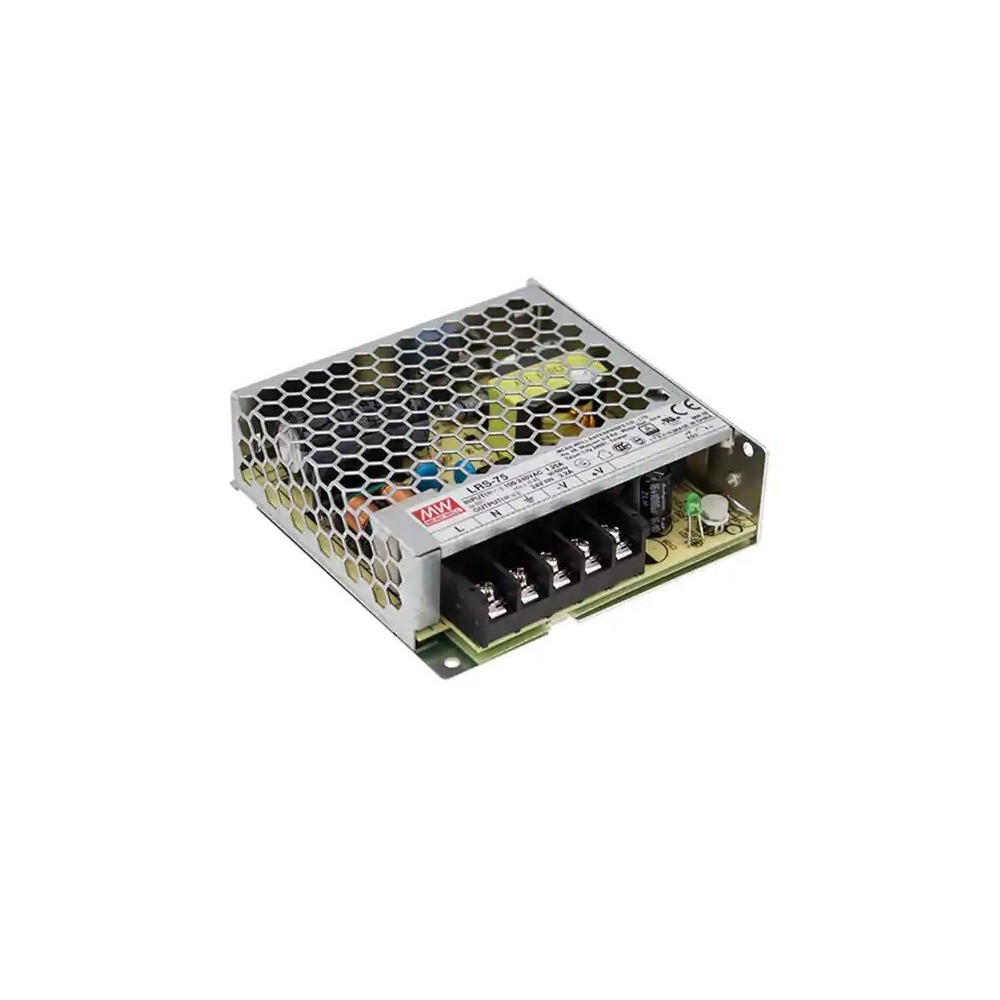

The MeanWell LRS-75 Series 75W Single Output Switching Power Supply has a rated output current of 6A at 12Vdc. It is equipped with a universal input voltage ranging from 85VAC to 264VAC and from 120Vdc to 373Vdc. Provides a metal mesh and air convection to ensure excellent heat dissipation. The power supply is able to offer extremely low power consumption under no load. The power supply meets anti-vibration requirements up to 5G and makes it ideal for installation in test environments.

General Features:

- Withstands 300VAC voltage spikes for 5 seconds
- High operating temperature, up to 70 ° C
- Passes the 5G vibration test
- Operates up to a height of 5,000 m
- High efficiency, long life and reliability
- Miniaturized dimensions, high power density
- Free air convection cooling
- Short circuit / overload protections / Over voltage
- Safety standard: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 / -2-16, CCCGB4943


Power: 75W
Output voltage: 12V DC
Max output current: 6A
Tolerance: 10.2V - 13.8V

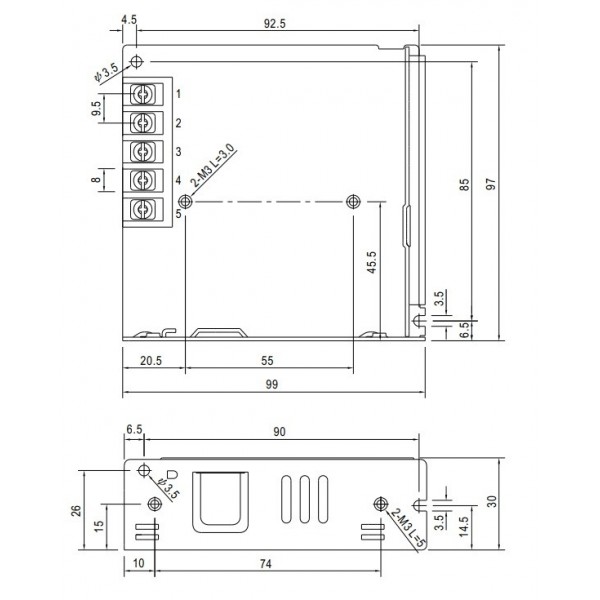

Dimensions: 99x97x30mm

Main Uses:

- Lighting Systems
- Industrial Plants
- Production Machines

10 Items

Data sheet
